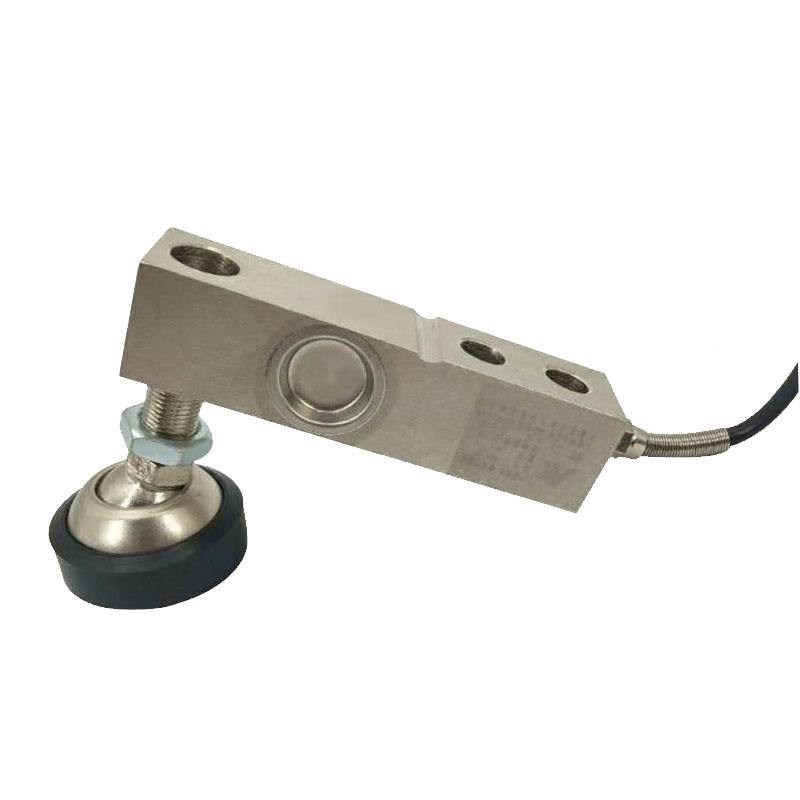

KELI SQB load cell
KELI SQB load cell
●Capacity: 0.1t to 10t
●Theaded load hole confirguration
●Low profile
●OIML C3 approval
●Optional material: stainless steel, alloy steel
APPLICATION:
●Floor scale
●Tank weighing
Outline Dimension： | |||||||||||
Rated capacity(t) | L | L1 | L2 | L3 | L4 | H | H1 | W | C1 | C2 | T |
0.1,0.15,0.2,0.3,0.5, 0.75,1,1.5,2,2.5 | 130 | 12.7 | 76.2 | 25.4 | 53.5 | 31.8 | 15.7 | 31.8 | Φ13.5 | Φ13 | M12 |
3,5 | 171.5 | 19 | 95.3 | 38.1 | 72.5 | 38.1 | 26 | 38.1 | Φ20 | Φ20 | M18x1.5 |
7.5,10 | 225.5 | 25.3 | 124 | 50.8 | 102 | 50.8 | 25.4 | 50.8 | Φ27 | Φ27 | M24x2 |
SPECIFICATION: | |
Rated capacity: 0.1ton to 10ton | Operating temperature range: -30 to +70℃ |
Rated output:2.0±0.002mv/v(0.1t~0.3t)； 3.0±0.003mv/v(0.5t~10t) | Maximum safe overload；150% OF R.C |
Combined error：±0.03% F.S(alloy steel)； ±0.05% F.S(stainless steel) | Ultimate safe overload；180% OF R.C |
Non-repeatability：±0.02% F.S | Recommended Excitation；10 to 12V DC |
Non-linearity：±0.02% F.S | Maximum Excitation；15V DC |
Hysteresis error：±0.02% F.S | Environment protection: IP67(0.1t~0.3t)； IP68(0.5t~10t) |
Zero balance: ±1% F.S | Input impedance: 400±20Ω |
Creep error(30minutes): ±0.02% F.S | Output impedance: 352±3Ω |
Temperature effect on zero: ±0.02% F.S | Insulation resistance at 50V DC: ≥5000MΩ |
Temperature effect on output: ±0.02% F.S | Material: nickel-plated alloy steel；Stainless steel |
Compensated temperature range: -10 to +40℃ | Cable length: (1.5/3)meter(0.1t~2.5t),4.2meter(3t~5t)，5meter(7.5t~10t)，diameter 6mm |
